Dishwasher turbine

The turbine measures the amount of water.It spins with the water and calculates the amount of water.X amount of turns per litre ( whatever the water pressure ).
image one

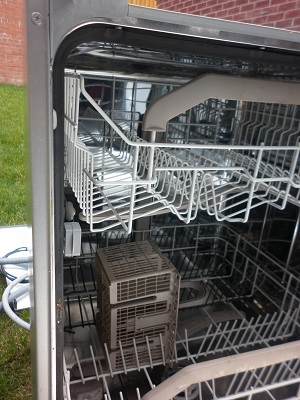

Open the door and remove the screws from the left hand side.


Remove the plynth, this can be a bit tricky (lie on it`s back ).

 image two


image three

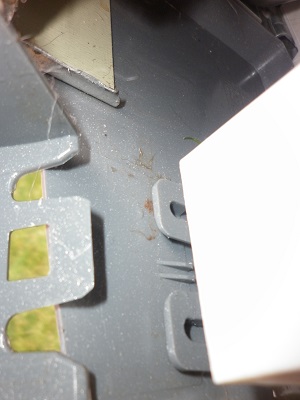

Remove the screw from behind the plynth.

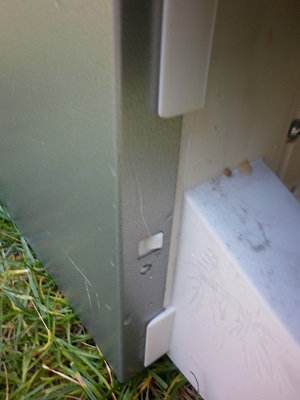

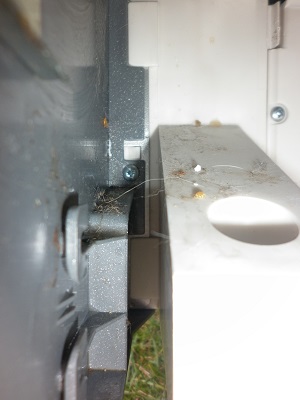

Remove the side casing and the front side panel clip can be seen this needs to be released.

 image four


image five

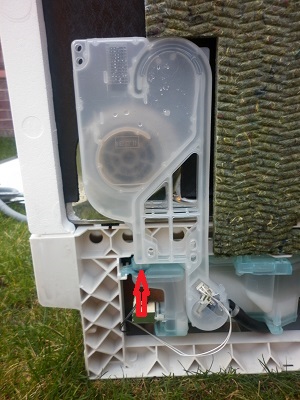

Once the , left hand , side panel is removed the metering tank can be seen.

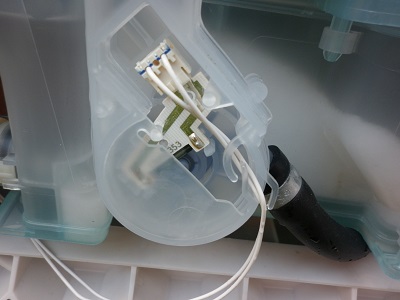

This is the turbine and it spins as the water enters the machine and the reed switch counts the revolutions (the turbine is inside the metering tank and has to be replaced as a complete unit.

 image six


image seven

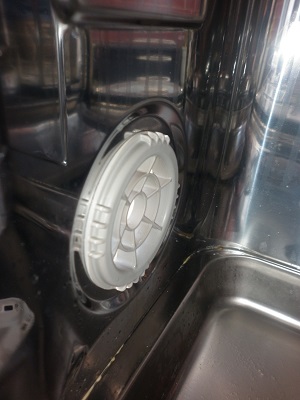

To remove the metering tank remove the screw fix from inside the machine.


The metering tank is secured by means of a lug , the top of the metering tank must be pulled away from the machine and pulled up to release the lug (arrowed).

 image eight


image nine

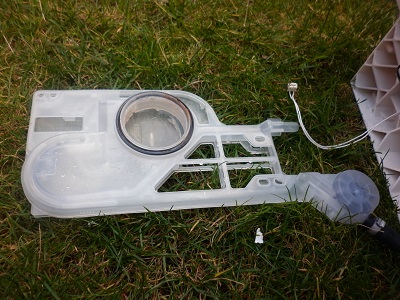

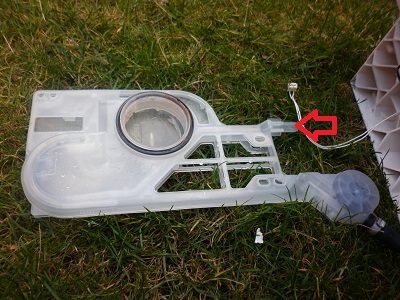

The metering tank can now be released and dropped down.Note the lug arrowed.


Now remove the wire connector and inspect and remove the water hose(the water hose can be twisted off ). Now job done refit in reverse order.

 image ten
